Where leaks actually come from
A roof that leaks in Thailand is almost never a failure of the primary roof covering across its field area. Clay tiles, concrete tiles, and metal standing seam roofing systems (correctly specified and installed) are weatherproof across the broad expanse of their surface. Leaks originate at the transitions, junctions, and penetrations where different materials meet, where the roof plane changes direction, and where elements pass through the roof surface. These are the points that require careful detailing and where shortcuts in specification or installation produce the water ingress that appears inside the villa during the first serious monsoon rain event.
Thailand’s monsoon delivers rainfall at intensities that expose inadequate detailing immediately and completely. A junction that would admit modest water ingress in a moderate European rain event, admits significant water ingress under monsoon conditions. The errors that cause leaks are predictable, consistent across Thailand’s villa construction market, and preventable at the specification and supervision stage.
Inadequate flashing at penetrations and junctions
Flashing is the waterproofing detail that seals the junction between a roof covering and any element that passes through it or meets it: chimneys, vent pipes, soil stacks, conduit runs, solar panel mounting feet, dormer walls, and the junction between a pitched roof and a vertical wall. Every one of these junctions is a potential leak point if the flashing is absent, incorrectly specified, or poorly installed.
The failure mode is consistent: the roof covering sheds water effectively across its field area, but water that tracks along the surface of a pipe or conduit penetrating the roof, or that accumulates at the junction between tile and wall, finds the inadequately sealed gap and enters the building. Under normal rain the volume may be small enough to evaporate before causing visible damage. Under monsoon rainfall intensity the volume is not small and the damage is immediate and visible.
Correct flashing specification involves lead or high-quality self-adhesive bitumen membrane flashing dressed into the roof covering at all penetrations, with upstands extending a minimum of 150 millimetres up any vertical surface, and stepped flashing at abutments between roof slopes and walls. Solar panel mounting systems that penetrate the roof covering require waterproofed penetration details at each mounting foot. The mounting feet are the leak points, not the panels above them, and this distinction is sometimes lost in the focus on panel installation.
On budget builds in Thailand, flashing is the element most commonly simplified or omitted. A soil stack pushed through a tile roof with a rubber collar and no lead or membrane detail, or a dormer junction sealed with silicone that degrades within a year or two of UV exposure, are common constructions that produce predictable and early leaks. Silicone sealant is not flashing, it is a gap filler with a limited service life that is not adequate as primary waterproofing at roof junctions.
Valley and hip detailing that cannot handle monsoon flow
Roof valleys (the internal junctions where two roof slopes meet at a downward angle) collect the total rainfall from both slopes and concentrate it into a drainage channel. Under monsoon rainfall intensity, the volume of water flowing through a roof valley is substantially greater than temperate climate detailing assumptions account for.
Two failure modes appear consistently in Thai villa valley construction. The first is an undersized valley channel that overtops under peak flow, directing water under the adjacent tiles and into the roof assembly. The second is a valley lined with standard roofing material rather than a dedicated waterproof valley lining, where water infiltrates at tile laps or joints in the valley lining material under the pressure of high-volume flow.
Correct valley specification involves a dedicated waterproof valley lining, either purpose-made valley tiles or a metal valley gutter in aluminium or zinc, with a channel width adequate for the roof area it drains at monsoon peak flow rates. The calculation that determines adequate channel width is based on the catchment area draining to the valley and the design rainfall intensity, rather than what looks proportionate or what the standard tile range includes.
Hip junctions (the external ridges where two roof slopes meet at an upward angle) are less vulnerable than valleys but require correct detailing at the ridge and at the eave termination where the hip meets the gutter. Hip tiles that are poorly bedded or inadequately fixed, lift in high winds and admit water at the gap beneath. In a location where strong winds accompany monsoon rainfall, this is not a rare event.
Flat roof and low pitch sections without membrane waterproofing
Any roof section with insufficient pitch to drain reliably through a tile or metal lap system requires membrane waterproofing. The threshold pitch below which membrane waterproofing is required rather than optional varies with the roofing system, but as a practical guide, roof sections below five degrees of pitch should be treated as flat roofs with full membrane waterproofing rather than as shallow-pitch tile or metal roofs.
The failure mode on low pitch tile or metal roofs in Thailand is straightforward: monsoon rainfall arrives in volumes that back up under tile laps and metal seam joints that rely on gravity and pitch for drainage. At sufficient flow volume, capillary action and wind pressure drive water upslope under the lap or joint and into the roof assembly. The roof covering that performs correctly at ten degrees of pitch performs incorrectly at two degrees under the same rainfall conditions.
Membrane waterproofing for flat and low pitch roof sections requires a continuous, joint-free waterproof layer (modified bitumen or thermoplastic membrane) applied over a correctly prepared substrate, with all penetrations and upstands detailed correctly, and drainage outlets positioned and sized for peak monsoon flow. A membrane roof that ponds water because the outlets are undersized or poorly positioned ages faster and leaks earlier than one that drains freely after each rain event.
Eave and gutter details that allow wind-driven rain entry
The eave is the point where the roof covering terminates and transfers rainfall to the gutter and downpipe system. It is also the point where wind-driven rain, arriving horizontally or at a low angle during monsoon storms, can enter beneath the roof covering if the eave detail does not prevent it.
Insufficient roof overhang is the underlying design cause. A roof that terminates close to the wall line without adequate overhang exposes the top of the wall and the underside of the eave structure to wind-driven rain that the roof covering cannot intercept. The water that enters this gap wets the wall top, the eave fascia, and the ends of any timber in the roof structure, and tracks inward if the junction between roof covering and eave is not sealed.
Eave closure details (purpose-made eave filler pieces that close the gap between the corrugated or profiled underside of roof tiles and the top of the fascia board) prevent wind-driven rain entry at the eave line. They also prevent pest entry into the roof space, which is a secondary but real benefit in Thailand’s biological environment. On budget builds these details are frequently omitted because they are invisible from ground level and add modest cost. They are also the reason that specific buildings leak at the eave line during high-wind rain events and others do not.

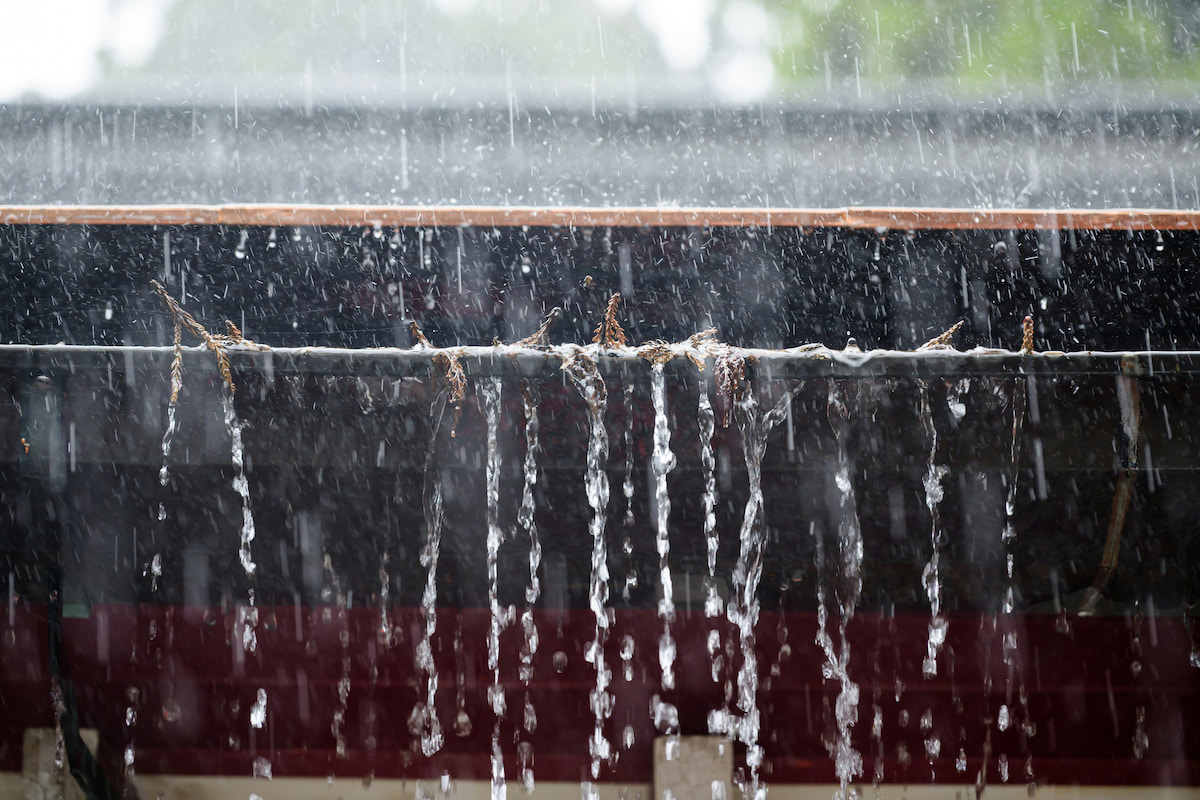

Gutter capacity must be sized for peak monsoon rainfall intensity across the roof area it serves. Gutters that overflow during heavy rain because they are undersized for the catchment direct water down the wall face, saturating the wall base and creating the sustained moisture at foundation level that produces biological growth, efflorescence, and in poorly waterproofed walls, interior dampness.
Inadequate waterproofing at roof terraces and balconies
Roof terraces and balconies in Thai villa construction are not simply flat areas that receive rainfall. They are horizontal surfaces that must prevent all water that lands on them from entering the structure below, for the entire service life of the building, under repeated wet season exposure.
The membrane waterproofing beneath terrace and balcony finishes is the element that prevents this ingress. It is also the element that is most commonly specified inadequately, installed on a poorly prepared substrate, or detailed incorrectly at the junctions with adjacent walls and drainage outlets where the majority of failures originate.
Correct specification involves a liquid-applied waterproof membrane applied to a clean, crack-free substrate, with reinforcement tape at all junctions and corners, minimum 150 millimetre upstands to all adjacent vertical surfaces, and tested continuity of the membrane before the finish surface is applied over it. A membrane that is applied to a substrate with existing cracks, or without continuous upstands at wall junctions, fails at those points under the thermal cycling and structural movement that every building experiences over time.
The finish surface applied over the membrane — tile, stone, timber decking — must not trap water against the membrane surface. Falls in the finish surface must direct water to drainage outlets that penetrate the membrane with correctly waterproofed flanged outlets, not standard pipe penetrations sealed with sealant. A terrace that ponds water against the base of the wall junction upstand loads the membrane at the most vulnerable point in the detail continuously.
The bottom line
Roof leaks in Thai villas do not appear randomly. They appear at the specific points where detailing was inadequate for Thailand’s monsoon conditions: penetrations without proper flashing, valleys without adequate linings, low pitch sections without membrane waterproofing, eaves without closure details, and terraces with inadequate or incorrectly detailed membranes. Every one of these failures was predictable before construction began and preventable with correct specification and supervision during construction.
The monsoon will find every inadequate detail. Correct specification finds them first.
